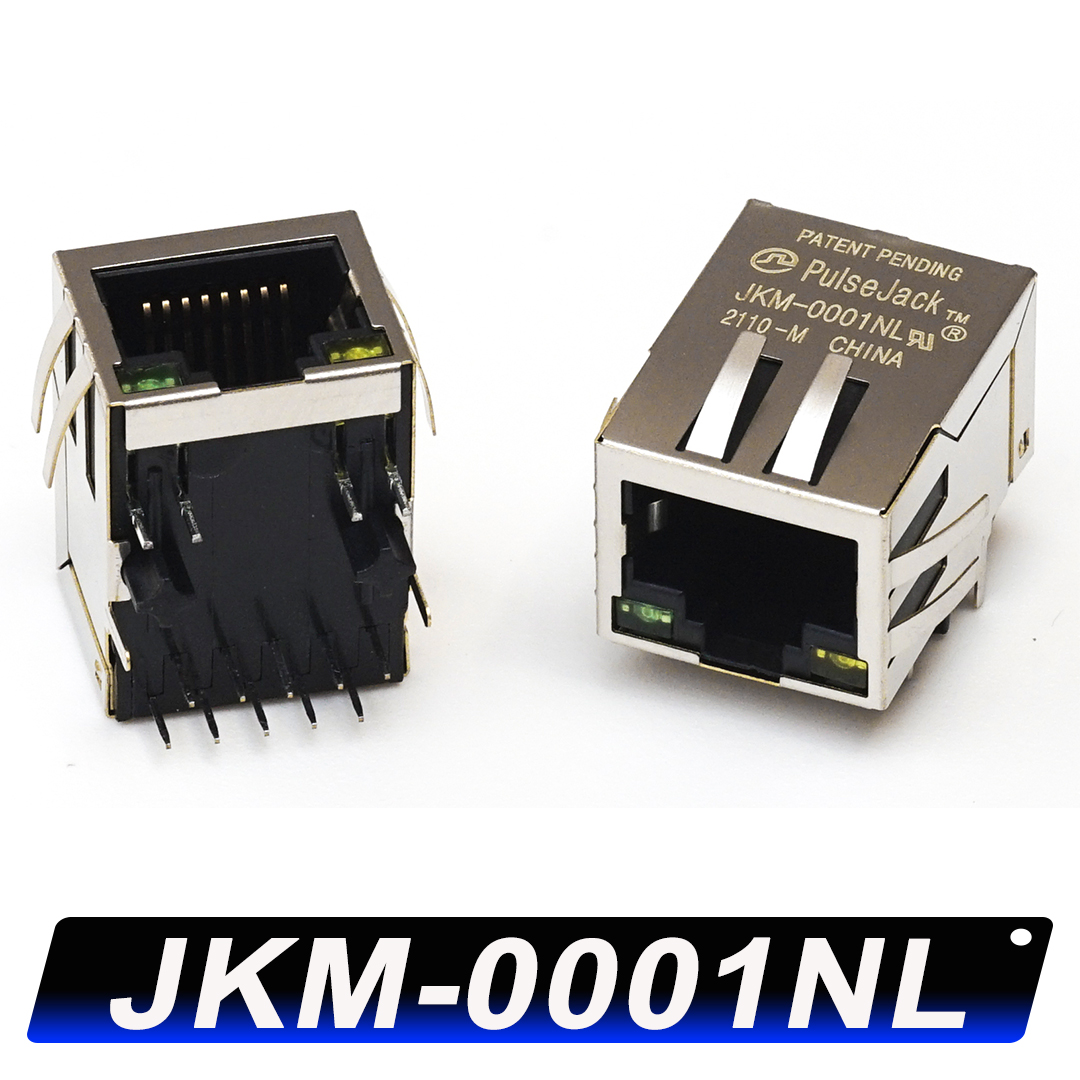

The JKM-0001NL RJ45 Ethernet Network Connector Module is a high-performance network interface module designed for 10/100/1000 Base-T Ethernet applications, featuring AutoMDIX functionality for stable connections between devices. It uses a shielded RJ45 interface to provide superior signal integrity, making it ideal for various network devices. The 90° angled installation and SMD surface-mount design make it suitable for space-constrained PCB layouts. The module is equipped with green and yellow LED indicators, which allow users to easily monitor the network connection status in real time. With an operating temperature range of 0°C to 70°C, it is perfect for both industrial and commercial environments. Additionally, the module complies with RoHS standards, meeting global environmental regulations.

Technical Specifications:

• Interface Type: RJ45
• Port Configuration: Single port
• Supported Network Standards: 10/100/1000 Base-T
• Installation Type: 90° angled, SMD surface-mount
• Operating Temperature Range: 0°C to 70°C
• LED Indicators: Green and yellow
• Shield Type: Shielded
• Contact Material: Phosphor bronze
• Housing Material: Thermoplastic

Applications:

This module is widely used in the following fields:

• Industrial Automation Systems: It provides stable network connections and is suitable for factory automation, Industrial IoT (IIoT), and PLC controllers.
• Communication Devices: It is suitable for routers, switches, VoIP devices, and base stations.
• Embedded Systems: It is used in smart devices, embedded controllers, and IoT applications.
• Servers and Data Centers: It offers high-speed Ethernet connectivity, optimizing server and storage networks for stability.

With its excellent performance and compatibility, the JKM-0001NL RJ45 Ethernet Network Connector Module is the ideal network interface solution for both industrial and commercial environments.
